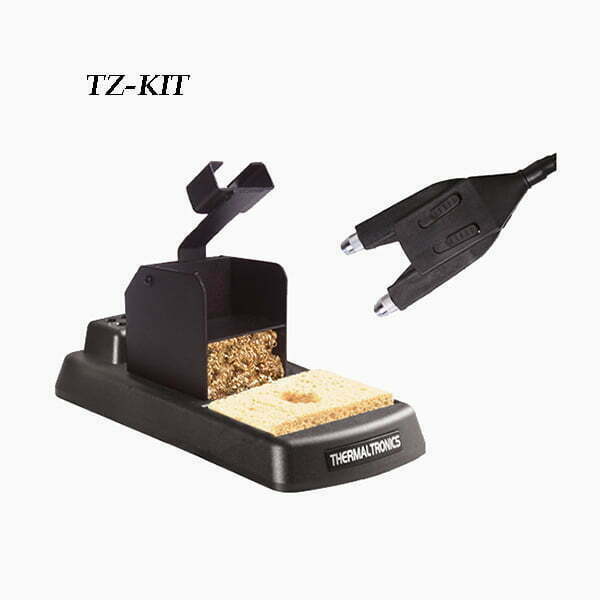

鑷子手柄組 TZ-KIT

貨號: TZ-KIT 分類: 標籤: , ,
  • 廠牌:Thermaltronics
  • 設計小巧,操作簡單靈活。
  • 適合對微小元器件的返修。
  • 可以上下左右調整烙鐵頭,鎖住單手臂或雙手臂。
  • 烙鐵頭 X-Y 方向調整。
  • 此產品無法單獨使用,需搭配Thermaltronics智能烙鐵。

產品規格

TZ-KIT-1(適用TMT-9000S)包含鑷型手柄及支架,鑷型烙鐵頭需選購:
60 = 325°C – 358°C 70 = 350°C – 398°C 80 = 420°C – 475°C

型號寬度 mm長度 mm
M60TZ0030.2513.4
M60TZ0040.416
M60TZ010113.4
M60TZ010B19
M60TZ0151.512
M60TZ0181.7815
M60TZ018B1.7810
M60TZ0254.8316.4
M60TZ10010.419
M60TZ16015.759
M60TZ22022.19
M70TZ0030.2513.4
M70TZ0040.416
M70TZ010113.4
M70TZ010B19
M70TZ0151.512
M70TZ0181.7815
M70TZ018B1.7810
M70TZ0254.8316.4
M70TZ10010.419
M70TZ16015.759
M70TZ22022.19
M80TZ0030.2513.4
M80TZ0040.416
M80TZ010113.4
M80TZ010B19
M80TZ0151.512
M80TZ0181.7815
M80TZ018B1.7810
M80TZ0254.8316.4
M80TZ10010.419
M80TZ16015.759
M80TZ22022.19

TZ-KIT-3(適用TMT-2000S)包含鑷型手柄及支架,鑷型烙鐵頭需選購:
60 = 325°C – 358°C 70 = 350°C – 398°C 80 = 420°C – 475°C

型號寬度 mm長度 mm
K60TZ0030.2513.4
K60TZ0040.416
K60TZ010113.4
K60TZ010B19
K60TZ0151.512
K60TZ0181.7815
K60TZ018B1.7810
K60TZ0254.8316.4
K60TZ10010.419
K60TZ16015.759
K60TZ22022.19
K70TZ0030.2513.4
K70TZ0040.416
K70TZ010113.4
K70TZ010B19
K70TZ0151.512
K70TZ0181.7815
K70TZ018B1.7810
K70TZ0254.8316.4
K70TZ10010.419
K70TZ16015.759
K70TZ22022.19
K80TZ0030.2513.4
K80TZ0040.416
K80TZ010113.4
K80TZ010B19
K80TZ0151.512
K80TZ0181.7815
K80TZ018B1.7810
K80TZ0254.8316.4
K80TZ10010.419
K80TZ16015.759
K80TZ22022.19
