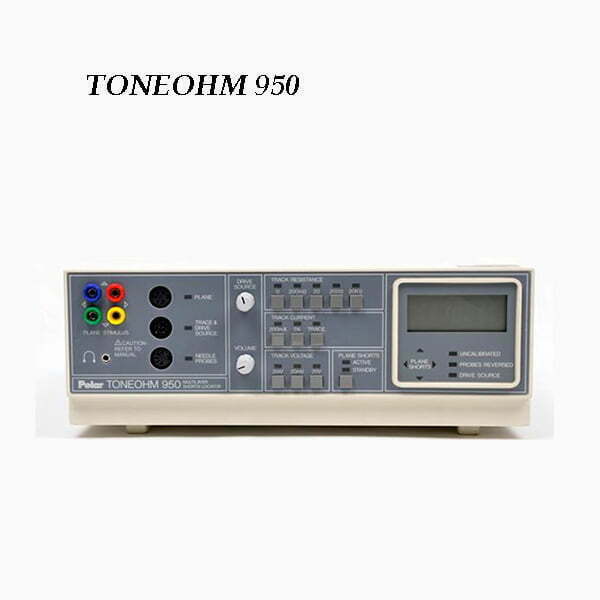

產品規格
| Track resistance | |
| Ranges | Ω, 200mΩ, 2Ω, 200Ω, 20kΩ |
| Accuracy | ±4% in 200mΩ ±5% in 20kΩ |
| Ω range | High sensitivity uncalibrated, approximately 40mW full scale |
| Probe voltage | 60mV maximum |
| Probe protection | ±30V |
| Indication | Tone and meter on all ranges |
| Track current | |
| Ranges | 200mA, 2A, Trace |
| Accuracy | 200mA, 2A, ±15% |
| Trace | Reading proportional to current when UNCALIBRATED illuminates Reading proportional to detected magnetic field strength |
| Probe voltage | 600mV maximum in 200mA, 2A |
| Probe protection | ±30V |
| Indication | Tone and meter on all ranges |
| Track voltage | |
| Ranges | 2mV, 20mV, 20V |
| Accuracy | ±4% ±15µV |
| Input resistance | 120Ω in 2mV, 20mV 1MΩ in 20V |
| Probe protection | ±30V |
| Indication | Tone and meter on all ranges |
| Plane shorts | |
| Indication | Tone, digital display and LED fault direction arrows |
| Sensitivity | Adjustable to compensate for differing plane resistance |
| Voltage | |
| Power | 230V±10% or 115V±10% @ 50/60Hz, 25VA |
| Drive source | Output voltage 0 to 550mV, adjustable AC in TRACE, DC in all other modes. Protected to ±30V |
| Plane stimulus | Output voltage 550mV maximum |
