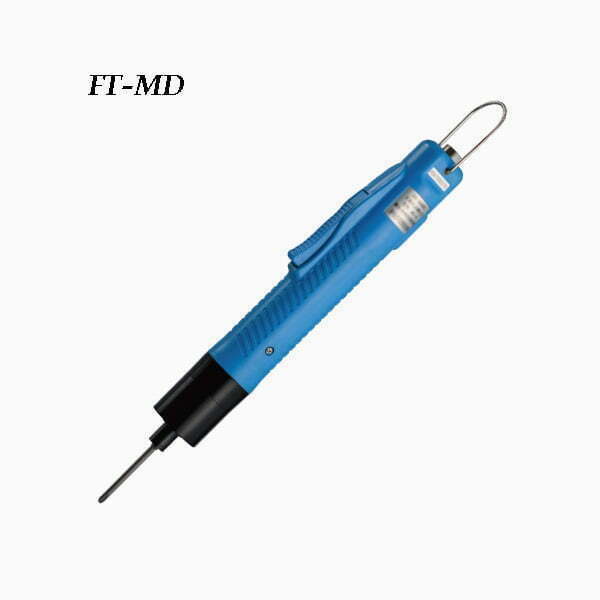

Skip to content智能電動起子 FT-MD系列
- 具滑牙警報功能，提示擰緊錯誤。
- 高速無碳刷馬達，可免清潔及更換碳刷，使用壽命長。
- 無觸點感應煞車開關，無接觸、無火花、無磨損。
- DC直流電壓，穩定輸出。DC電源線標準長度2米。
- 扭矩調整：無段式
- 扭矩偏差：最大力矩時±5%
- 轉速偏差：±10%
產品規格
| 型號 | 扭矩 | 無負載轉速 | 螺絲尺寸 |
| Kgf.cm | N.m | Low | High | 機械牙 | 自攻牙 |
| FT-MD-01 | 0.1~1 | 0.01~0.1 | / | 1000 | 1.0~2.3 | 1.0~2.0 |
| FT-MD-02 | 0.2~2 | 0.02~0.2 | / | 1000 | 1.0~2.3 | 1.0~2.0 |
| FT-MD-03 | 0.3~3 | 0.03~0.29 | / | 1000 | 1.0~2.3 | 1.0~2.0 |
| FT-MD-04 | 0.4~4 | 0.04~0.39 | / | 1000 | 1.4~2.6 | 1.4~2.3 |
| FT-MD-05 | 0.5~5 | 0.05~0.49 | / | 1000 | 1.4~2.6 | 1.4~2.3 |
| FT-MD-06 | 1~6 | 0.1~0.59 | / | 1000 | 1.4~2.6 | 1.4~2.3 |
| FT-MD-06F | 1~6 | 0.1~0.59 | / | 2000 | 1.4~2.6 | 1.4~2.3 |
| FT-MD-10 | 2~10 | 0.2~0.98 | / | 1000 | 1.4~2.6 | 1.4~2.6 |
| FT-MD-12 | 2~12 | 0.2~1.18 | / | 1000 | 1.6~3.0 | 1.6~2.6 |
| FT-MD-15 | 3~15 | 0.29~1.47 | / | 1000 | 2.6~4.0 | 2.6~3.0 |
| FT-MD-15F | 3~15 | 0.29~1.47 | / | 2000 | 2.6~4.0 | 2.6~3.0 |
| FT-MD-18 | 4~18 | 0.39~1.76 | / | 1200 | 2.6~4.0 | 2.6~3.0 |
| FT-MD-18F | 4~18 | 0.39~1.76 | / | 2000 | 2.6~4.0 | 2.6~3.0 |
| FT-MD-20 | 5~20 | 0.49~1.96 | / | 1000 | 2.6~4.0 | 2.6~3.0 |
| FT-MD-25 | 7~25 | 0.69~2.45 | / | 850 | 2.6~5.0 | 2.6~4.0 |
| FT-MD-25F | 7~25 | 0.69~2.45 | / | 2000 | 2.6~5.0 | 2.6~4.0 |
| FT-MD-30 | 9~30 | 0.88~2.94 | / | 700 | 3.0~5.0 | 3.0~4.0 |
| FT-MD-45 | 10~45 | 0.98~4.41 | / | 700 | 3.0~5.0 | 2.6~4.0 |
| FT-MD-50 | 12~50 | 1.18~4.9 | / | 700 | 4.0~6.0 | 4.0~5.0 |
| FT-MD-60 | 20~60 | 1.96~5.88 | / | 400 | 4.0~6.0 | 4.0~5.0 |
| FT-MD-70 | 30~70 | 2.94~6.86 | / | 300 | 5.0~6.0 | 5.0~6.0 |
| FT-MD-80 | 40~80 | 3.92~7.84 | / | 300 | 5.0~6.0 | 5.0~6.0 |
| FT-MD-90 | 50~90 | 4.9~8.82 | / | 300 | 5.0~6.0 | 5.0~6.0 |
| FT-MD-100 | 60~100 | 5.88~9.8 | / | 200 | 5.0~6.0 | 5.0~6.0 |
| FT-MD-120 | 70~120 | 6.86~11.76 | / | 200 | <8.0 | <6.0 |
| FT-MD-150 | 80~150 | 7.84~14.7 | / | 200 | <8.0 | <6.0 |
