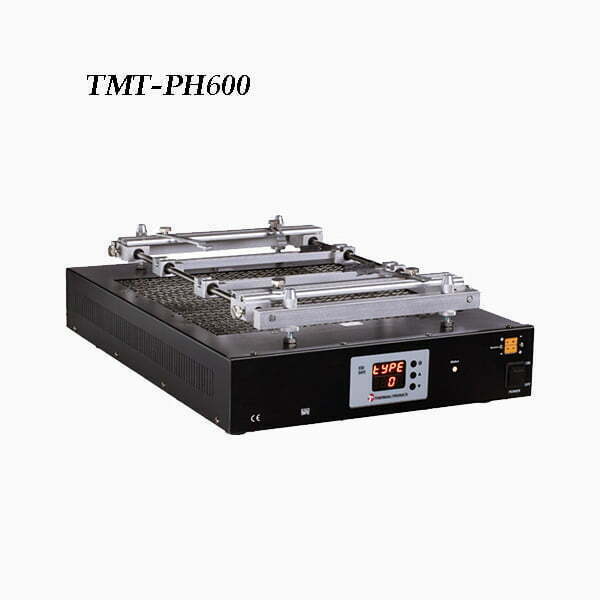

IR Preheater TMT-PH600

SKU: TMT-PH600 Category: Tags: , ,
  • Brand：Thermaltronics
  • Three heating modes allow the system to manage both leaded and lead free applications
  • Microprocessor accurately regulates temperature
  • Two external temperature sensor probes
  • Professional board holder allows 3D adjustments
  • Three heating modes to meet different requirements

Specification

ModelTMT-PH600
Input VoltageTMT-PH600-1　100-110 VAC, 2000W
TMT-PH600-2　220-240 VAC, 1500W
Temperature Range50℃ – 400℃
Heating Area310mm × 310mm
Heating MethodInfrared
FuseTMT-PH600-1　250V 16A
TMT-PH600-2　250V 10A
Dimension520mm × 380mm × 100mm
Weight9 kg
AccessoriesPH-KTC-1 Thermocouples - 2 Pack

Comparison

ModelHeating MethodHeating AreaTemperature RangePower
FT-853Hot Air130×130mm120~250℃460W
FT-854Infrared130×130mm50~350℃400W
FT-870Alumimum180×200mm50~300℃800W
FT-PH6700Infrared633×713mm0~200℃2200W
TMT-PH600Infrared310×310mm50~400℃2000W
