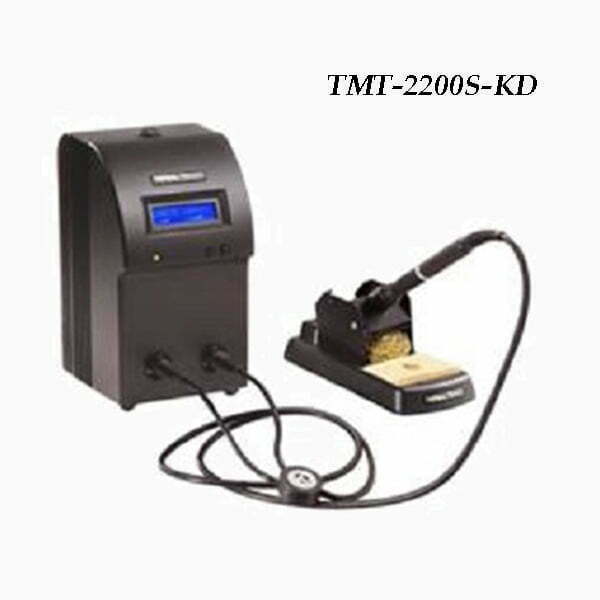

Heavy Duty Soldering System TMT-2200S-KD

SKU: TMT-2200S-KD Category: Tags: , , ,
  • Brand:Thermaltronics
  • based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material
  • Dual ports with simultaneous heat up
  • High thermal recovery & performance.
  • 470KHz power supply with built-in LCD display
  • No calibration or operator training required
  • No additional coil assembly costs
  • Lead-free and ESD-safe
  • 適用KD系列烙鐵頭。

Specification

ModelTMT-2200S-KD
Input VoltageAC 100-240V
Surface Resistivity105-109 Ω/sq
Tip to Ground Potential<2mV
Tip to Ground Resistance<2 Ohms
Idle Temperature Stability+/- 1.1 °C (2°F)
Maximum Enclosure Temperature50 °C (122°F)
Maximum Output Power110 W
Output Frequency470 KHz
DimensionW126×H230×D148mm
Weight2.60 kg
LCD display60mm×16mm
Input Line Frequency50/60 Hz

Option

ModelSpecification
KD65CH018Chisel 30° 1.78mm (0.07″)
KD65CH025Chisel 30° 2.5mm (0.10″)
KD65CH030Chisel 30° 3.00mm (0.12″)
KD65CH032Chisel 90° 3.20mm (0.13″)
KD65CH040Chisel 30° 4.00mm (0.16″)
KD65CH050Chisel 30° 5.0mm (0.20″)
KD65CH060Chisel 50° 6.00mm (0.24″)
KD65CH080Chisel 90° 8.0mm (0.31″)
KD65CH155Chisel 15.5mm (0.61″) x 2.5mm (0.10″)
KD65CHU080U-Shape Chisel 90° 8.0mm (0.31″)
KD65GV055Groove Tip, 5.5mm (0.22″) x 3.2mm (0.13″)
KD65GV069Groove Tip, 6.9mm (0.27″) x 5.2mm (0.20″)
KD65GV070Groove Tip, 7.0mm (0.28″) x 3.65mm (0.14″)
KD65GV079Groove Tip, 7.9mm (0.31″) x 5.0mm (0.20″)
KD65LB075Step down Blade Tip, 7.5mm (0.30″)
KD65LB124Blade Tip, 5.0mm (0.20″)
KD65LB125Blade Tip, 10.41mm (0.41″)
KD65RC075Round Connector R5, 7.5mm (0.39″)
KD65RC085Round Connector R8.5, 8.5mm (0.33″)
KD65RC104Round Connector R6, 10.4mm (0.41″)
KD65RC104ARound Connector R6, 10.4mm (0.41″)
KD65RC122Round Connector R8, 12.2mm (0.48″)
KD65RC127Round Connector Ø8, 12.7mm (0.5″) x 8mm (0.31″)
KD65RC140Round Connector R30, 14.0mm (0.55″)
KD65UC025ID11Drag Soldering U Chisel, 2.5mm (0.10″) x 1.1mm (0.043″)
KD65WV080Hoof w/Dent 8.00mm (0.31″)
