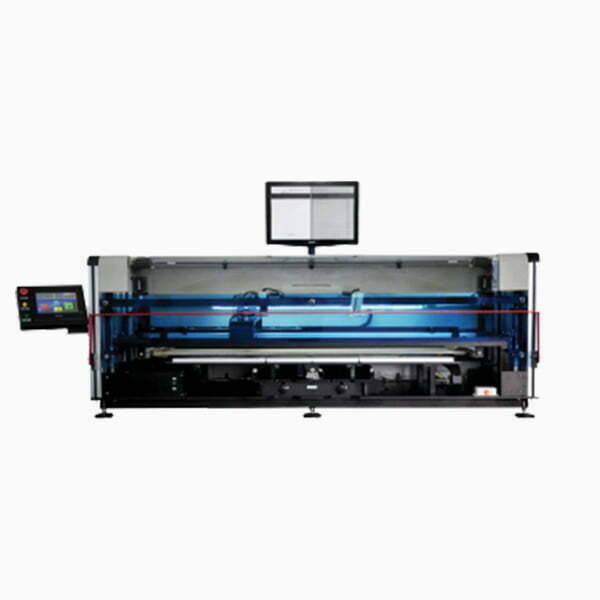

Semi-Automatic Stencil Printer SP1200

SKU: SP1200 Category: Tag:
  • Brand：德國AUTOTRONIK
  • 全自動大型鋼網錫膏印刷機。
  • The circuit board is supported by a universal frame holder, which does not require any additional tools for printing double-sided circuit boards.
  • Dual squeegees with dual-stroke control for efficient solder paste use
  • Vertical Seperation of Stencil from PCB
  • Programable Speed Control for both squeegee movement and stencil separation
  • Dual Camera system for quick PCB alignment

Specification

ModelSP1200
Stencil Frame Size350×350~1480×500mm
Printing Area1200×400mm
PCB Size1250mm×410mm
X- and Y-Axes Range±13 mm
Theta Rotation±3.5°
Underside Clearance25 mm
Z-axis Range0~35 mm
Position Repeatability±0.01 mm
Dimension1719×1006×581mm
Weight162kg
