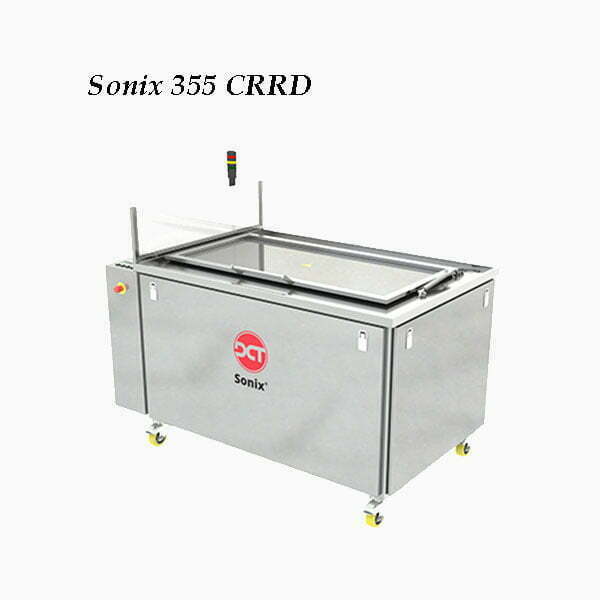

Conformal Coating Removing and PCB Cleaning Sonix 355 CRRD

SKU: Sonix 355 CRRD Category: Tags: ,
  • Brand:捷克DCT
  • The Sonix® cleaning systems are a unique ultrasonic technology developed and manufactured by DCT.
  • Including 100% separated processes of cleaning, pre-rinsing, fi nal rinsing and drying technologies.
  • All processes are automated and take place in 4 separate process chambers, which are also storage tanks.
  • For special cleaning applications to eff ectively remove cured conformal coating. Exceptionally, they can be used for board cleaning if the boards are compatible with ultrasonic technology. They are also suitable for degreasing processes of metal components.

Specification

ModelSonix 355 CRRD
Dimension1740×1220×1210 mm
Weight400 kg
Ø energy consumption per cycle1.92 kWh
Cleaning and rinsing fl uid consumption per cycle0.05 – 0.3 L
Compressed air consumption per cycle83 l / 5 Bar
Dimensions of carrier basket270×530×620 mm
Max. dimensions of the cleaned parts280×540×630 mm
Temperature range setting of the cleaning and rinsing fl uidFrom ambient temperature to 60°C
Ultrasound Frequency35 kHz
Temperature range setting of the dryingFrom ambient temperature to 80°C
Noize Level<70 dB
Device ControlPLC + 5.7“ touchscreen
Volume of the storage tanks120 L
Power Supply三相五線400V, 32A, 50Hz
Pmax15 kW
Recommended working pressure4.5 – 6 Bar
