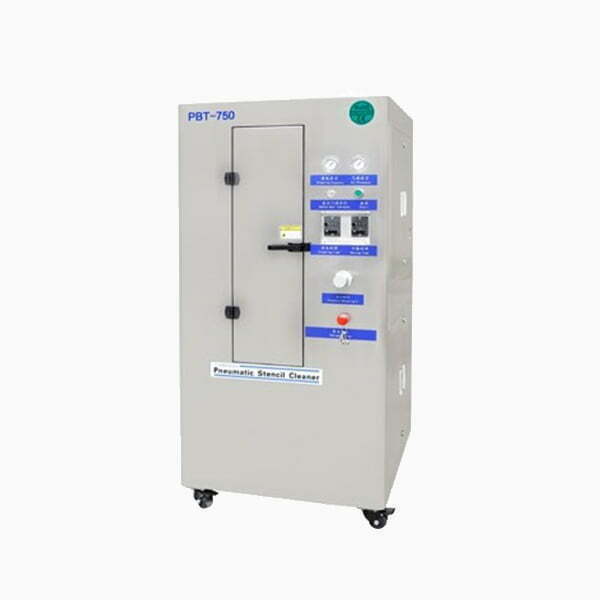

Pneumatic Stencil Cleaner PBT-750

SKU: PBT-750 Category: Tag:
  • High density isobaric bilateral rotating cleaning nozzle.
  • All stainless steel body, beautiful, wear resistance, corrosion resistance, in line with environmental requirements and standards.
  • Fully pneumatic operation, no electricity, no fire and other safety hazards, has passed the European safety certification.
  • High density isobaric bilateral rotating cleaning nozzle: strong cleaning force and will not destroy the tension of steel mesh.
  • Three-level five-layer filtration system, low exhaust pipe design: solvent recycling, low liquid consumption.
  • Humanized design: one-click operation and automatic filling and draining function, the operation is very simple.
  • System integration of global quality components: to ensure good quality, stable performance, long service life.
  • Replaceable modular controller and quick plug design, maintenance is also very simple and convenient.

Specification

ModelPBT-750
適用網板尺寸L750 × W750 × H40 mm 超大尺寸需訂制
液箱最大容積42升(Man)
最佳液體使用量22~35L
清洗方式360°旋轉式液體噴淋清洗及壓縮空氣乾燥
Cleaning Time3~5分鐘
Drying Time3~5分鐘
外部氣源0.45~0.7 Mpa
Air Consumption350~500 L/min
Exhaust Port SizeØ100×H30mm
最大引力風速3m/see
一級濾箱過濾10μm(過濾雜質及標籤)
三級濾芯過濾0.45μm(過濾錫球及松香顆粒)
DimensionL950 × W800 × H1680 mm
Net Weight230 kg
