UV LED Lamp FT-8804-H

SKU: FT-8804-H Category: Tags: , , ,
  • Lifespan up to 30000 hours, 10 time longer than the mercury-vapor light.
  • Instant On/Off, no warm up or cooling down time.

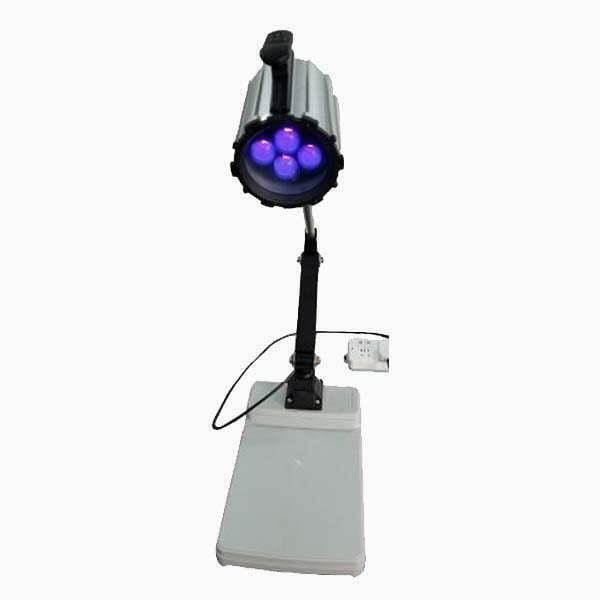

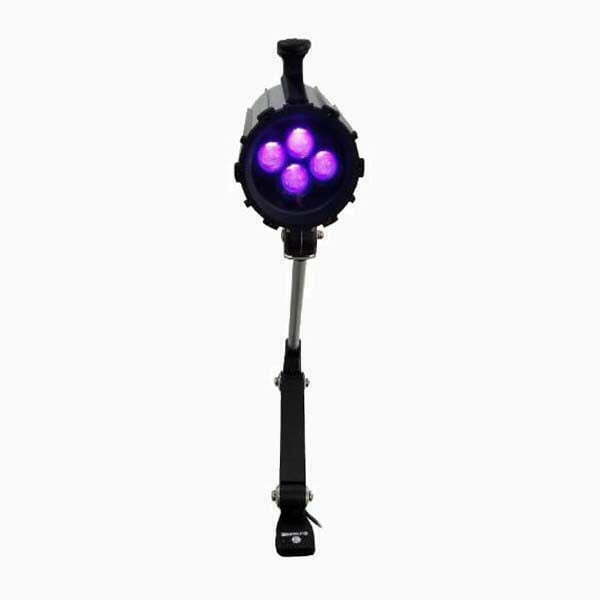

  • 有桌面式FT-8804-H-D和桌夾式FT-8804-H-C可供選擇。
  • 100% solid state cold ensures working properly in strong magnetic field.

Specification

ModelFT-8804-H
Peak-Wavelength365~370 nm UV紫外光
Number of LEDs4個5W LED
Average LED Life30,000 hours
Irradiated Area16×12cm（在38cm距離）
Visible Light Emission<20 Lux
UV Intensity18000uw/cm²（在38cm距離）
Stability of Intensity>90%
Power Supply100~220AC交流電源，可24小時持續無間斷工作
Dimension116×108mm
Weight960g
OptionalSpare UV Filter Glasses (orange or yellow), UV filter

Comparison

ModelTypePeak-WavelengthNumber of LEDs
FT-6300-H手電筒365nm UV light1個5W
FT-8300-H手電筒365nm UV light1個5W
FT-8300-G手電筒525NM green light1個5W
FT-8904-H手持式/可加腳架365nm UV light4個5W
FT-8904-G手持式/可加腳架525NM green light4個5W
FT-8804-H桌面式/桌夾式365nm UV light4個5W
FT-8804-G桌面式/桌夾式525NM green light4個5W
FT-8108-H大面積懸掛式365nm UV light8個5W
FT-8108-G大面積懸掛式525NM green light8個5W
FT-8208-H燈管懸掛式365nm UV light8個5W
FT-8208-G燈管懸掛式525NM green light8個5W
FT-8806-GY桌面式525nm綠光 + 595nm黃光6個5W
FT-8806-GW桌面式525nm綠光 + 6000K白光6個5W
FT-8906-GY手持式/可加腳架525nm綠光 + 595nm黃光6個5W
FT-8906-GW手持式/可加腳架525nm綠光 + 6000K白光6個5W
FT-8500-GY桌面式510-590NM green yellow light1個20W
FT-8500-W桌面式6000K white light1個20W
FT-8600-GY手持式/桌面式510-590NM green yellow light1個20W
FT-8600-W手持式/桌面式6000K white light1個20W
FT-8900-GY手持式/桌面式510-590NM green yellow light1個30W
FT-8900-W手持式/桌面式6000K white light1個30W
FT-6300S-H小型檯燈式365nm UV light1個10W
FT-6300S-G小型檯燈式525NM green light1個10W
FT-6300S-W小型檯燈式6000K white light1個10W
