Name: 波峰焊爐溫測試儀 DS-10 - 兆勗企業
SKU: DS-10
Availability: InStock

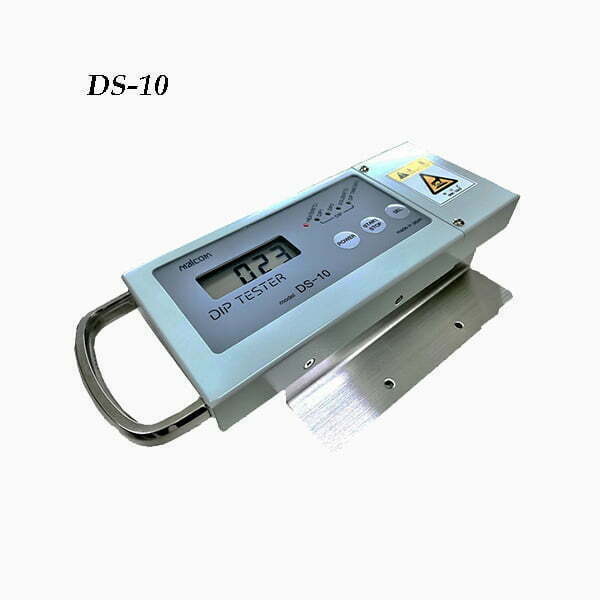

Dip Tester For Selective Solder Machine DS-10

Brand：日本MALCOM
Putting it a conveyor to flow through a solder bath to obtain information needed to manage it.
USB connection to a PC, the dedicated software enables for OK/NG judgment and the management of the test results.
The created temperature profile makes it possible to monitor the 50ms sampling temperature of the preheat and solder temperature sensors in addition to the conventional management items.
The heat-resistant cover for high heat load such as Nitrogen oven and etc. is available as an option.
Equipped with a New Dip Time Sensor, providig a more accurate measurement.

Specification

Model	DS-10
Cold contact point compensation	Compensation with platinum temp. measuring resistor
Heatresistant temp.	150℃/5min
Display	LCD
External connection	USB mini
Number of memories	1個
Sampling time	50ms（固定）
Dimension	W78 × L214 × H43.6 mm
Weight	820g
Power Supply	AAA batteries x 2pcs. (Ni-MH rechargeable battery is also available.)

Dip Tester For Selective Solder Machine DS-10
