PCB Repair Circuit Frame

Category: Tags: ,

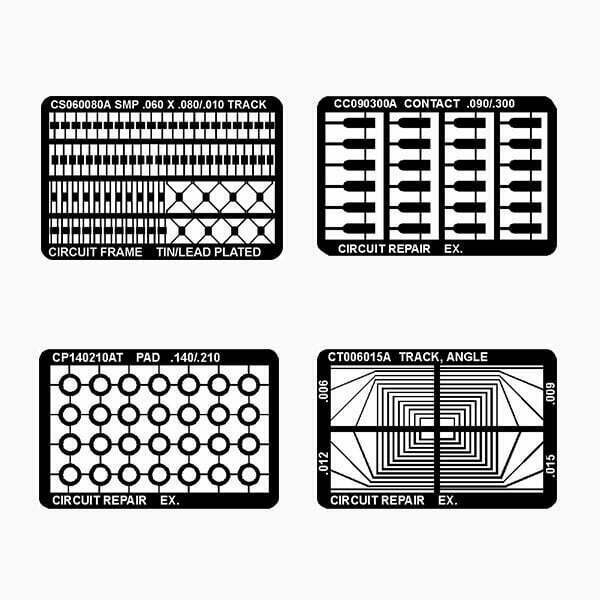

  • Circuit Frames are used to replace damaged surface mount pads, lands, and conductors. Circuit Frames have a dry-film adhesive backing that is cured in 30 seconds using heat from a bonding Iron. The replaced pad, land, or conductor has a bond strength equal to the original, and no messy liquid epoxies are used for bonding.
  • First, remove the defective pad, or conductor. Apply liquid flux and tint with solder if a connecting circuit is present.
  • Then, select a replacement pad, land, or conductor from a Circuit Frame. Next, carefully scrape off the adhesive bonding film from the solder joint area on the back of the new pad, land, or conductor.
  • Then, trim out the new pad from the Circuit Frame. Cut from the plated side of the Circuit Frame.
  • Next, place the new pad in position on the circuit board surface using high-temperature tape.
  • The adhesive backing is cured in 30 seconds at 260 degrees Celcius. If the new pad has a connecting circuit, the final step is to lap solder the joint connect.

Specification

品名PCB Repair Circuit Frame
Dimension2.25″ x 1.50″（57 x 38 mm）
Base MaterialRolled annealed copper foil .0014" (.036 mm) thick
Adhesive MaterialB-staged modified acrylic film adhesive .002" (.051 mm) thick
Bonding Temperature475°F±25°F（246°C±14°C）
Bonding Pressure200-400 psi（14-28 kg/cm2）
Bonding Time30 seconds
Peel StrengthMinimum 8 lbs/inch (1.43 kg/cm) after cure to FR-4 material
Frame NumberGold Edge Contact FramesPlating
CC035080AGGold Edge Contacts .035″ x .080″ (0.89 mm x 2.03 mm)Gold
CC038255AGGold Edge Contacts .038″ x .250″ (0.97mm x 6.35 mm)Gold
CC050060AGGold Edge Contacts .050″/.060″ (1.27 mm/1.52 mm)Gold
CC050300AGGold Edge Contacts .050″ x .300″ (1.27 mm x 7.62 mm)Gold
CC070080AGGold Edge Contacts .070″/.080″ (1.78 mm/2.03 mm)Gold
CC070210AGGold Edge Contacts .070″ x .210″ (1.78 mm x 5.33 mm)Gold
CC076190AGGold Edge Contacts .076″ x .190″ (1.93 mm x 4.83 mm)Gold
CC085360AGGold Edge Contacts .085″ x .360″ (2.16 mm x 9.14 mm)Gold
CC090300AGGold Edge Contacts .090″ x .300″ (2.28 mm x 7.62 mm)Gold
Frame NumberLand FramesPlating
CP050060ASLands .050″/.060″ (1.27 mm/1.52 mm)Tin
CP067267ASLands .067″ x .267″ (1.70 mm/6.78 mm)Tin
CP070080ASLands .070″/.080″ (1.78 mm/2.03 mm)Tin
CP090100ASLands .090″/.100″ (2.28 mm/2.54 mm)Tin
CP090100BSLands .090″ x .100″ (2.28 mm x 2.54 mm)Tin
CP140210ASLands .142″ ID x 210″ OD (3.60 mm ID x 5.33 mm OD)Tin
CP156097ASLands .156 OD x .097 ID (3.96 mm OD x 2.46 mm ID)Tin
CP250125ASLands .250″ OD x .125″ ID (6.35 mm OD x 3.18 mm ID)Tin
Frame NumberSurface Mount Pad FramesPlating
CS004085ASSurface Mount Pads .004″ x .085″ (0.10 mm x .20 mm)Tin
CS012060ASSurface Mount Pads .012″ x .060″ (0.30 mm x 1.52 mm)Tin
CS012100ASSurface Mount Pads .012″ x .100″ (0.30 mm x 2.54 mm)Tin
CS020028ASSurface Mount Pads .020″ x .028″ (0.508 mm x 0.711 mm)Tin
CS025080ASSurface Mount Pads .025″ x .080″ (0.63 mm x 2.03 mm)Tin
CS025080BSSurface Mount Pads .025″ x .080″ (0.63 mm x 2.03 mm)Tin
CS028185ASSurface Mount Pads .028″ x .185″ (0.71 mm x 4.70 mm)Tin
CS030055ASSurface Mount Pads .030″ x .055″ (0.76 mm x 1.40 mm)Tin
CS034030ASSurface Mount Pads .034″ x .030″ (0.86 mm x 0.76 mm)Tin
CS038090ASSurface Mount Pads .038″ x .090″ (.97 mm x 2.28 mm)Tin
CS040070ASSurface Mount Pads .040″ x .070″ (1.01 mm x 1.77 mm)Tin
CS040110ASSurface Mount Pads .040″ x .110″ (1.01 mm x 2.80 mm)Tin
CS045110ASSurface Mount Pads .045″ x .110″(1.14 mm x 2.80 mm)Tin
CS046106ASSurface Mount Pads .046″ x .106″ (1.17 mm x 2.70 mm)Tin
CS048068ASSurface Mount Pads .048″ x .068″ (1.22 mm x 1.73 mm)Tin
CS050050ASSurface Mount Pads .050″ x .050″ (1.27 mm x 1.27 mm)Tin
CS051087ASSurface Mount Pads .051″ x .087″ (1.30 mm x 2.21 mm)Tin
CS060080ASSurface Mount Pads .060″ x .080″ (1.52 mm x 2.03 mm)Tin
CS065055ASSurface Mount Pads .065″ x .055″ (1.65 mm x 1.40 mm)Tin
CS065095ASSurface Mount Pads .065″ x .095″ (1.65 mm x 2.41 mm)Tin
CS067173ASSurface Mount Pads .067″ x .173″ (1.70 mm x 4.39 mm)Tin
CS071106ASSurface Mount Pads .071″ x .106″ (1.80 mm x 2.69 mm)Tin
CS090100ASSurface Mount Pads .090″ x .100″ (2.28 mm x 2.54 mm)Tin
CS095095ASSurface Mount Pads .095″ x .095″ (2.41 mm x 2.41 mm)Tin
CS130177ASSurface Mount Pads .130″ x .177″ (3.30 mm x 4.42 mm)Tin
Frame NumberBall Grid Array Pad FramesPlating
CS015020ASBGA Pads .015″/.020″ (0.38 mm x 0.50 mm) DiameterTin
CS020025ASBGA Pads .020″/.025″ (0.38 mm x 0.63 mm)Tin
CS025035ASBGA Pads .025″/.035″ (0.63 mm/.89 mm) DiameterTin
CS051063ASBGA Pads .051’/.063″ (1.29 mm/1.60 mm) DiameterTin
Frame NumberConductor FramesPlating
CT006015ASConductor Tracks .006″/.015″ (0.15 mm/0.38 mm)Tin
CT006025ASConductor Tracks .006″/.025″ (0.15 mm/0.63 mm)Tin
