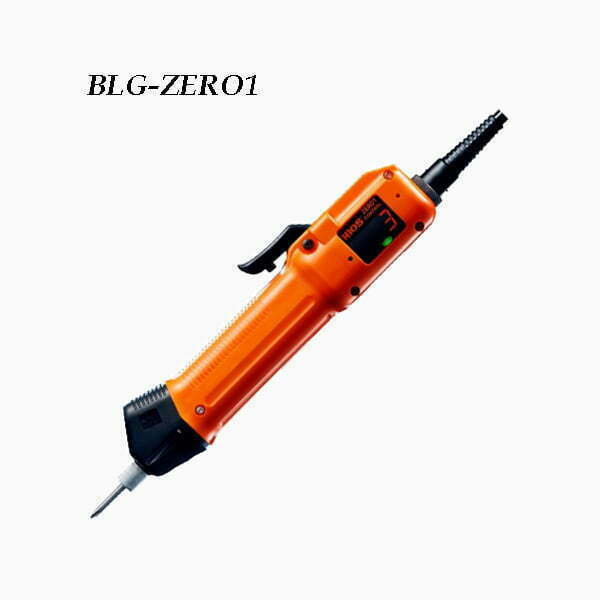

Electric Screwdriver BLG-5000ZERO1

SKU: BLG-5000ZERO1 Categories: , Tags: , ,
  • Brand:HIOS
  • Setting can be easily done by pressing a button. Time and effort for setting will be significantly saved by directly fastening several screws into the work pieces and allowing the driver to automatically learn the number of rotating pulses of the motor (the setting value is +10% of the maximum count and -10% of the minimum count) from the start to the completion of screw fastening.
  • By counting the number of rotating pulses of the motor, the system precisely judges screw fastening errors such as the mixing of a wrong type of screw, a floating screw, a Cam out recess, a stripped screw hole and a cross threaded screw.
  • It displays the remaining number of screws to fasten every time a screw is fastened.
  • Two-way (Push/Lever) Start Type
  • Grip 38 mm, Length 235 mm, Weight 425 g

Specification

ModelUnloaded Rotation SpeedTorque SpecificationScrew Size
LOWHIN.mlbf.inkgf.cmScrew SizeTapping
BLG-5000ZERO169010000.2~1.21.7~102~122.0~3.02.0~3.0
BLG-5000ZERO1-15100015000.3~1.02.6~103~102.3~3.02.0~2.6
BLG-5000ZERO1-18120020000.5~1.54.3~135~152.3~3.02.0~2.6
BLG-5000ZERO1-HT7300.5~2.04.3~175~202.0~4.02.0~3.0
