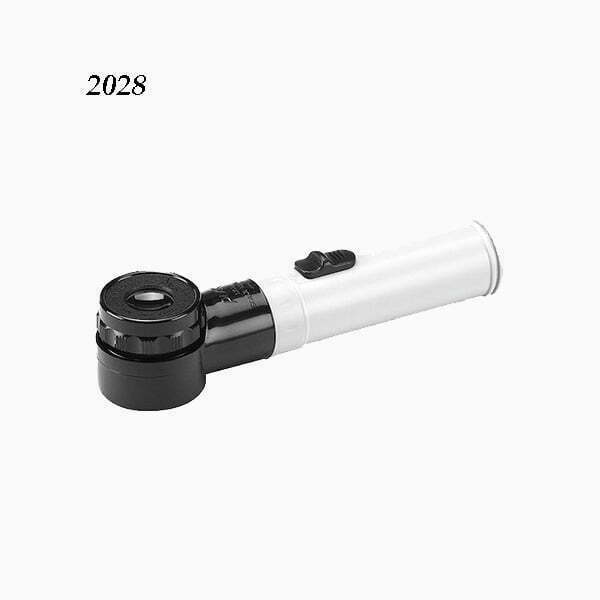

Scale Loupe 2028

SKU: 2028 Category: Tags: ,
  • Brand:日本PEAK
  • 10x Light Scale Loupe
  • Utilize achromatic optical glass construction made in Japan.
  • Bright, sharp, loupe clear acrylic base to admit light from all directions and a wide visual field of view.
  • This microscope is convenient for measuring the thickness, height or depth of subjects having different levels and for measuring the depth of items like print cylinders, printing plates and other similar applications.

Specification

Model2028
Magnification10X
Field of ViewØ32mm
DimensionØ47×45×185mm
Optional12種刻劃片

Comparison

ModelMagnificationField of View標配Optional
19757XØ24mmStandard Reticle12種刻劃片
198310XØ32mmStandard Reticle12種刻劃片
201615XØ20mmStandard ReticleNO.1、2、8刻劃片
2016L15XØ20mmStandard ReticleNO.1、2、8刻劃片
202810XØ32mmStandard Reticle and Light12種刻劃片
196110XØ24mm
196610XØ28mm
202315XØ19mm
2001-2525XØ3.3mm
2001-5050XØ1.7mm
2001-7575XØ1.09mm
2001-100100XØ0.84mm
