Specification
| Model | 1975 |
| Magnification | 7X |
| Field of View | Ø24mm |
| Dimension | Ø36×57mm |
| Optional | 12種刻劃片 |

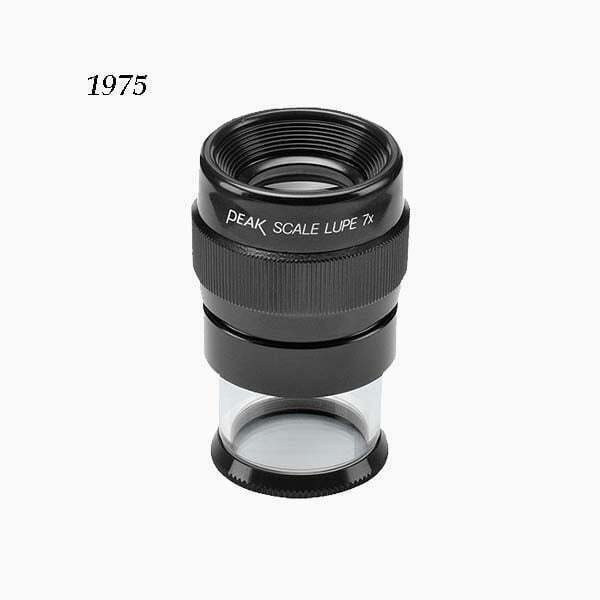

Scale Loupe 1975
- Brand：日本PEAK
- 7x Scale Loupe
- Utilize achromatic optical glass construction made in Japan.
- Bright, sharp, loupe clear acrylic base to admit light from all directions and a wide visual field of view.
- This microscope is convenient for measuring the thickness, height or depth of subjects having different levels and for measuring the depth of items like print cylinders, printing plates and other similar applications.
Comparison
| Model | Magnification | Field of View | 標配 | Optional |
| 1975 | 7X | Ø24mm | Standard Reticle | 12種刻劃片 |
| 1983 | 10X | Ø32mm | Standard Reticle | 12種刻劃片 |
| 2016 | 15X | Ø20mm | Standard Reticle | NO.1、2、8刻劃片 |
| 2016L | 15X | Ø20mm | Standard Reticle | NO.1、2、8刻劃片 |
| 2028 | 10X | Ø32mm | Standard Reticle and Light | 12種刻劃片 |
| 1961 | 10X | Ø24mm | – | – |
| 1966 | 10X | Ø28mm | – | – |
| 2023 | 15X | Ø19mm | – | – |
| 2001-25 | 25X | Ø3.3mm | – | – |
| 2001-50 | 50X | Ø1.7mm | – | – |
| 2001-75 | 75X | Ø1.09mm | – | – |
| 2001-100 | 100X | Ø0.84mm | – | – |
