Cross Hatch Cutter 107

SKU: 107 Category: Tags: , , , ,
  • Brand:Elcometer
  • An ideal field or laboratory test
  • Large, non slip grip
  • Ideal for thin, thick or hard coatings
  • A quick change, 4 sided cutter allows adhesion testing on a wide range of coating thicknesses (1mm, 1.5mm, 2mm and 3mm)
  • AS 3894.9, AS 1580.408.4, ASTM D 3359-B, BS 3900-E6, ECCA T6, EN 13523-6, ISO 2409, ISO 16276-2, JIS K 5600-5-6, NF T30-038
  • The Elcometer 107 Cross Hatch Cutter for adhesion testing is available as a Basic or Full Kit.

Specification

Model107
Cutter Type6×1mm6×2mm6×3mm11×1mm11×1.5mm
Coating Thickness0~60μm5~125μm121~250μm0~50μm
Dimension165×30×45mm
Weight390g
Basic KitRobust handle, cutter, hexagonal wrench, presentation storage case and instructions (together with Classification of Adhesion Test Results chart)

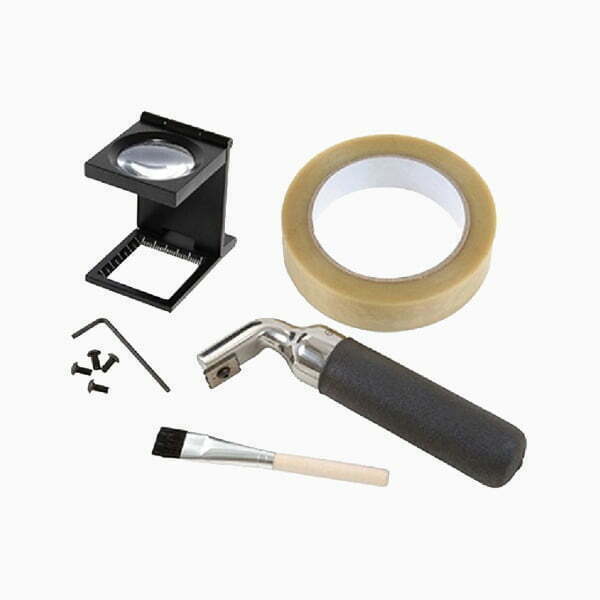

Full Kit:Robust handle, cutter, hexagonal wrench, presentation storage case and instructions (together with Classification of Adhesion Test Results chart)
magnifier (x6 magnification), brush and adhesive tape (either ASTM or ISO tape), all in a plastic ABS carry case
