Name: 智能烙鐵 TMT-1000S - 兆勗企業
SKU: TMT-1000S
Availability: InStock

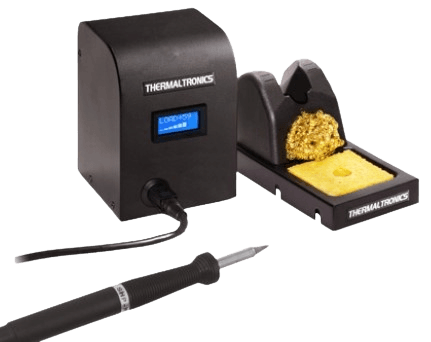

智能烙鐵 TMT-1000S

Brand：Thermaltronics
based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material
Curie Heat Technology operating at 470KHz
Maximum flexibility, allows the use of K, P and S Series tips
No calibration or operator training required
No additional coil assembly costs
Lead-free and ESD-safe
3 type of tip cartridges：K-series Soldering Iron Tip、P-series Soldering Iron Tip、S-series Soldering Iron Tip（The handpiece will vary based on system configuration）

Specification

參數表裝箱單

Input Voltage	12VDC,5A	TMT-1000PS	主機電源系統
焊嘴對地電壓	<2 mV	K75CH018	烙鐵頭(不提供更換服務)
Tip to Ground Resistance	<2 Ohms DC	SHH-6	烙鐵手柄支架
Idle Temperature Stability	+/-1.1°C(2°F)	SHP-K	烙鐵手柄
Maximum Enclosure Temperature	50°C(122°F)	RMP-1	烙鐵頭拆卸墊
輸出功率(最大)	50W	BC-1	銅絲球
Output Frequency	470KHz	SPG-1	不含硫化物海綿
尺寸(寬x高x長)	90x118x101mm	S-POWER-1	12VDC電源適配器
Weight	0.6KG
Output Frequency	100-240V,50/60Hz

系統配置

智能烙鐵 TMT-1000S
